Oak Framed Outbuildings and Stables
Oak framed buildings designed specifically for you, the site and your location.

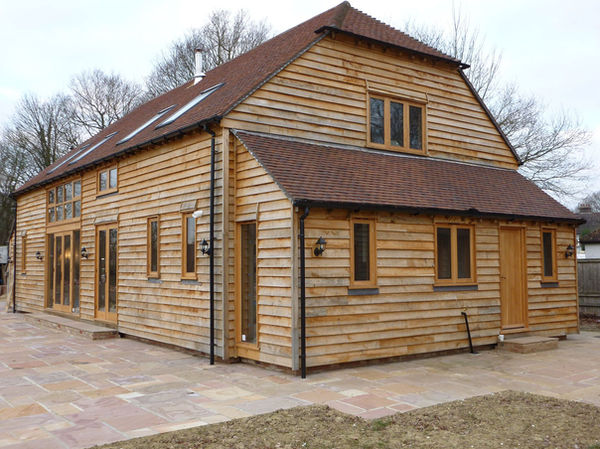

Outbuilding 7.0m x 7.0m
plus 6.0m x 7.0m (91m²)
Oak framed two storey outbuilding. Large garage bay and workshop area with a games room area to the side. There is space upstairs for accommodation or home office.
Specification:
-
200 x 200 mm unseasoned oak posts
-
200 x 150 mm unseasoned oak eaves beams
-
150 x 150 mm unseasoned oak mid rails (dwarf wall design only)
-
200 x 75 mm unseasoned oak sol plates
-
200 x 300 mm unseasoned oak floor beams
-
150 x 50 mm treated softwood floor joists between oak beams covered with 22mm moisture resistant chipboard flooring
-
150 x 55 mm unseasoned oak curve braces
-
150 x 50 mm treated softwood rafters at 45 degrees
-
100 x 50 mm treated softwood studwork and bracing
-
200 x 30 mm treated softwood weatherboard (cladding)
Prices:
-
Supply as a kit: £29,453.00
-
Fit kit – labour: £11,885.00
-
Tiles:
-
Machine made clay tiles: £26,565.00
-
-
Scaffolding: £2,657.00
Stable 5.0m x 4.0m
Oak framed stable barn with a hay store. Suitable for one horse and hay storage area, bays can be added for more stables or tack rooms.
Specification:
-
150 mm x 150 mm unseasoned oak posts (x3) at the front on staddle stones
-
150 mm x 150 mm unseasoned oak beam (front beam)
-
150 mm x 55 mm unseasoned oak curve braces
-
100 mm x 50 mm treated softwood rafters at 35 degrees
-
100 mm x 50 mm treated softwood studwork
-
Ply internal walls
-
200 mm x 30 mm treated softwood weatherboard
-
12mm ply up 1200mm, kickboards for horses
Prices:
-
Supply of Frame: £5,544.00
-
Assembly: £3,234.00
Specification:
Outer bays:
-
150 mm x 150 mm unseasoned oak posts
-
150 mm x 150 mm unseasoned oak eaves beam
-
150 mm x 150 mm unseasoned oak tie beams
-
150 mm x 75 mm unseasoned oak sol plates
-
150 mm x 55 mm unseasoned oak curve braces
To construct and assemble oak frame truck store in the workshop to consist of:
-
200 mm x 200 mm unseasoned oak posts
-
200 mm x 150 mm unseasoned oak eaves beam
-
200 mm x 200 mm unseasoned oak tie beams
-
150 mm x 50 mm treated softwood rafters at 35 degrees
-
100 mm x 50 mm treated softwood studwork and bracing
-
200 mm x 30 mm treated softwood weatherboard
Prices:
-
Supply of Frame £18,249.00
-
Assembly £6,757.00

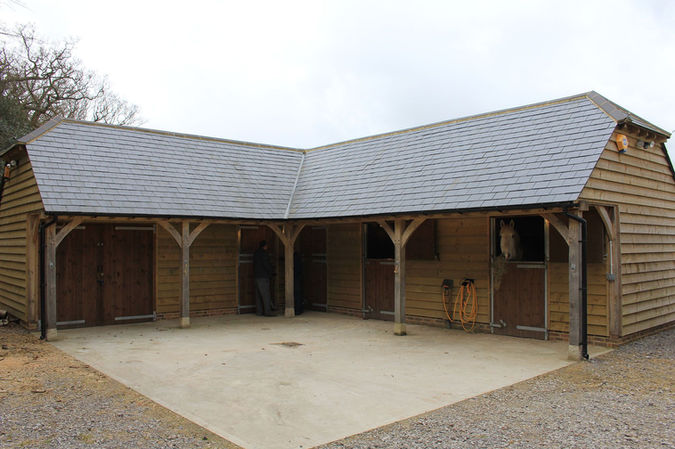

Stable 6.0m x 5.2m
either side and 3.6m x 8.0m centre bay
Oak framed barn that will accomodate a horse lorry to the centre bay, multiple stables can be added.
